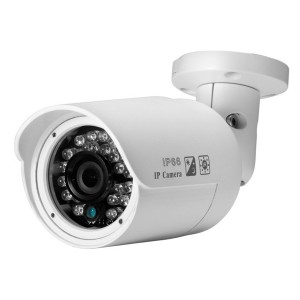

1.3 Megapixel IP Bullet Camera 3.6mm

1.3 Megapixel IP Bullet Camera 3.6mm


DKK 1,111.00 inkl. moms

YC-W931AHZ37

Tilgængelighed: På lager

30 andre varer i samme kategori:



1.3 megapixel HD IP network waterproof

IR CCTV camera - 3.6mm



◎ H.264 Video compression,support dual-stream,AVI;Support 0.1M~6Mpbs adjustable

◎ 1.3 megapixel 25 frames(real time),Support 1-25 frames/second adjustable

◎ adopt the high performance 1 megapixel 1/3'' CMOS media processor

◎ Pixel 1280(H)×720(V)

◎ ICR optical filter switch functions,day-night monitoring

◎ The IR distance amount to 30m

◎ IP 66,high reliability

◎ support pan-tilt control,local record ,history record

◎ Support the apparance of the real time alarming information

◎ support network protocol:RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/ ONVIF ect

◎ Support the appearance and maintainence of the record situations on the video interface

◎ Support recovery of the last monitor state management

◎ Focus and times adjustable

◎ Built-in Cable Bracket,angle adjustable





 Model

YC-W931AHZ37

Product Name

 1.3 megapixel HD network waterproof IR CCTV camera

 System

EmbededRTOS design,dicaryon 32 bit DSP(TI Davinci DM365)

,compression,watchdog, 32M FLASH,128M DDR2

 Pickup Device

 1.3 megaxpixel 1/3" CMOS sensorAR0130

 Pixel

 1280(H)×960(V)

 Video Code

 H.264 video Code,support Dual-stream,AVI;

Support stream 0.1M-6Mpbs adjustable

 Video compression bit rate

 1.3 megapixel 25 frames(real time),

Support 1-25 frames/second adjustable

Dual stream

 Main stream:1280×960,1024×768,1280×720:

Sub streams:960×540,640×360,480×270,352×288,

320×240,352×192,320×192,288×192,256×192;

Minimum Illumination

color :1.0Lux@F1.2, black and white 0 Lux@F1.2(IR ON )

 AGC

 Auto

 White Balance

 Auto

 Day-night Switch

 Support day-night switch,support photoresistance signal linkage

 Network Port

 RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/ONVIF ;

 Data storage

videotype storage,screenshot picture storage

 Storage Method

manual,auto(Timing video, move to alarm video)

 Analog Output

 One analog video ouput;support CVBS Standard,PAL/NTSC optional

Optional funtion

-

Operating Temperature

-10 - +55

IR LEDS

24xØ 5 IR Leds

IR Distance

10-15m

Power Supply

DC12V ±10%

Power Consumption

180mA/340mA (IR on)

Lens

3.6/6mm M12 megapixel HD lens

Size

Ø 172 x 65.7mm
