HD outdoor night vision waterproof

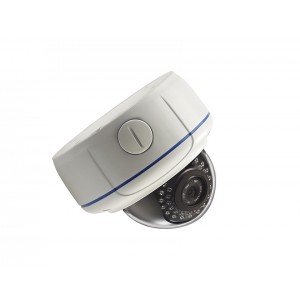

2 Megapixels ONVIF Dome ip camera 6mm
POE with P2P IP69 camera
Feature:
1/2.5-inch 2.0 Megapixel (1080P 1920*1080@30ps) HI3516C+Sony IMX 122 CMOS LOW LUX
Waterproof Day&Night indoor/outdoor
1) Dual stream encoding / H.264 compression mode
2) Lens: 6mm fixed lens (4/8MM optional)
3) 30 pcs Ø5mm IR-LED ,IR Range: 25M
4) Support Multi-Screen software and CMS
5) Support one channel audio input, one channel audio output
6)Support Mobilephone View(Iphone,Android) with P2P
Specification:
Item |
BE-IPDB200Z |
Chipset |
1/2.5-inch 2.0 Megapixel (1080P 1920*1080@30ps) HI3516C+Sony IMX 122 CMOS |
Day and Night |
Yes |
Min.Scene Illumination |
0.01lux(IR ON) |
Infrared sensitivity |
Support |
IR Filter |
IR-CUT |
IR-led |
Yes |
IR distance |
20M |
Electronic shutter |
1/5-1/15,000 /S |
lens |
2.8-12MM Manual Zoom Lens |
Compression |
H.264 Main Profile/Baseline |
Picture Resolution |
1080P 1920*1080@30ps |
Steam flow |
Support dual stream |
Bit Rate |
32-16384kbps |
Bit Rate Type |
CBR/VBR |
S/N Ratio |
>50DB |
Image enhancement |
Auto White Balance,Backlight compensation, Brightness,Contrast,Saturation adjusted |
Subtitles input |
Support channel name, date/time |
Flip Config |
Up/down, Left/right |
Audio |
|
Audio |
Support the microphone input and LINE OUT, support two-way voice intercom equipment |
equipment |
An external audio equipment |
Audio input/ output |
one channel audio input, one channel audio output |
Audio Compression |
G.711 |
Network |
|
Protocal |
HTTP,TCP/IP,UDP,SMTP,DDNS,DNS,SNTP,DHCP, FTP,RTP,RTSP,UPNP,ONVIF,PSIA |
Ethernet |
Ethernet (10/100 Base-T),RJ-45 connector |
Safety |
IP address filtering,User level password protection, The user access log |
Software |
|
WEB Browser |
Microsoft Internet Explorer 6.0 and above, google,firefox etc. |
Software Management |
CMS and the devices Compatible with ONVIF |
Software intelligence function |
Motion detection, Network disconnect, IP address conflict |
Event action |
Files are stored to the back end equipment, Send E-mail,take pictures,send to FTP, etc |
Remote Access |
DDNS,P2P(network and mobilephone) |
Physical properties |
|
Power Supplier |
DC 12V/1A |
Temperature |
-20°~60°C |
Humidity |
-10~85% |
Certification |
CE ,FCC,RoHS |
