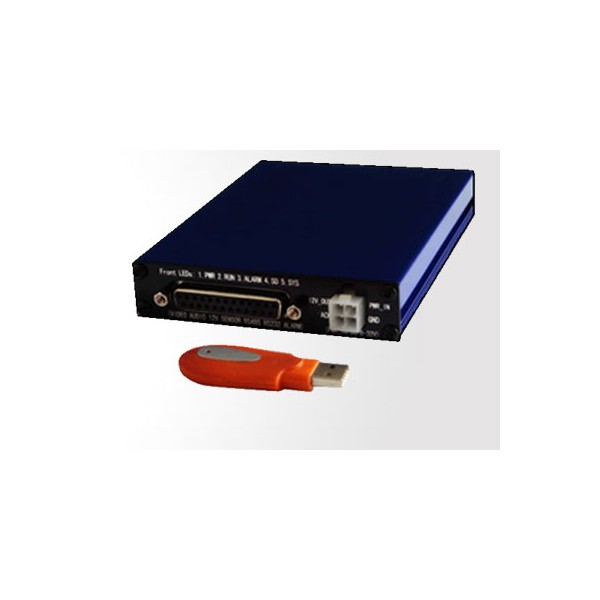

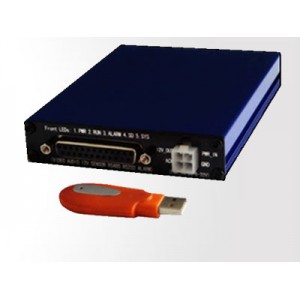

SD Card Mini Vehicle MDVR 4002 Taxi


DKK 3,198.00 inkl. moms

MDVR 4002

29 andre varer i samme kategori:



SD Card Mini Vehicle MDVR 4002 Taxi


It’s designed to meet demanding security applications such as public transportation, law enforcement and military. This Mobile DVR is mounted on a small, rugged, vibration and shock resistant bracket, allows recorded video to be quickly exported through it’s LAN port or an extra USB2.0 HDD Reader.

This Mobile DVR is currently being used in the following applications:
•Law Enforcement - Patrol Cars
•Military - Tanks
•Emergency – Ambulances, Fire Trucks
•Public – Buses, Trains, Railways, Subways
•Commercial – Boats, Heavy Equipment, Limousines, Taxis, Vans
•Transportation - Freight Liners
•Aviation – Helicopters, Commercial and Private Aircraft

Item Capability specs
system Language Simplified Chinese/Traditional Chinese/English
Operate interface Graphics menu
Password Admin's password, user's password
Video Video input 4Channel 1.0V, p-p,75O,BNC
Video output 1Channel 1.0V, p-p,75O,BNC
Display 1/2/4 channel display
Video standard PAL(25fps) NTSC(30fps)
Audio Audio Input 1/2/4Channel,20KO,RCA
Audio output 1Channel,500O,RCA
Voltage output 1V ~2V, p-p
Audio Recording Video & Audio recording together
Audio compression AAC

Image and Storage

Image compression H.264 High Profile compression
Compress capability D1×100 frame
Video rate D1: 200Kbps ~ 2Mbps,4 level image adjustable
Audio rate 8KB/s
Data storage SD card, USB interface can connect USB Flash Driver & HD
Video format AVI Video & Audio file output
Alarms Sensor input 1 speed signal,1 ignition signal,3 common signal input
Communication interface Serial interface Support 2 RS232 port, 1 RS485 port
Network interface RJ45,10M/100M network port
Wireless Communication (Developing) CDMA CDMA Module outside connection optional
EDGE EDGE Module outside connection optional
GPRS GPRS Module outside connection optional
GPS Support GPS module outside connection; longitude,latitude,speed can display on your monitor

Software PC display Display Video file and analyse the vehicle's information
Third party software Support Third party software,such as VLC,or Windows media player with uMedia plug-in
Software upgrade Support USB & SD card upgrade
Power Power input DC:+8V ~ +32V
Power output +12V@1.5A;+5V@1A
Watt consumption 5W;Less than 0.1W when units Stand-by
Working Condition Temperature -10----60?
Size 9.2CM(W)×2.0CM(H)×11.5CM(L)
