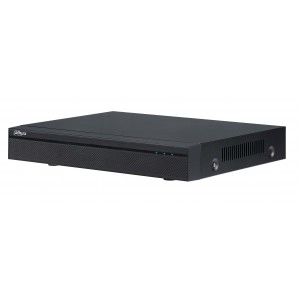

dahua 4CH 960H Mini 1U Face Detection DH-iDVR5104H-F

dahua 4CH 960H Mini 1U Face Detection DH-iDVR5104H-F


DKK 1,398.00 inkl. moms

DH-iDVR5104H-F

Tilgængelighed: Bestillingsvare 1-3 uger

30 andre varer i samme kategori:


dahua 4CH 960H Mini 1U

Face Detection

DH-iDVR5104H-F


>Support 1ch face detection, instant playback and face index playback

>4 cameras with 1080p realtime preview

>H.264 dual-stream video compression

>iDVR5104H-F: All channel 960H realtime recording

>HDMI/VGA/TV simultaneous video output

>4 channel synchronous realtime playback, GRID interface & smart search

>3D intelligent positioning with Dahua PTZ dome camera

>Support 1 SATA HDD up to 4TB, 2 USB2.0

>Multiple network monitoring:

Web viewer, CMS(DSS/Smart PSS)&Smart Phone(DMSS)



Model

DH-iDVR5104H-F

System

Main Processor

Embedded processor

Operating System

Embedded LINUX

Video

Input

4 channel, BNC

Standard

NTSC(525Line, 60f/s), PAL(625Line, 50f/s)

Audio

Input

1 channel, RCA

Output

1 channel, RCA

Two-way Talk

Reuse audio input/output channel 1

Display

Interface

1 HDMI, 1 VGA, 1 TV, BNC(1.0Vp-p, 75Ω)

Resolution

1920×1080, 1280×1024, 1280×720, 1024×768, 800×600

Display Split

1/4

Privacy Masking

4 rectangular zones (each camera)

OSD

Camera title, Time, Video loss, Camera lock,

Motion detection, Recording

Recording

Video/Audio Compression

H.264 / G.711

Resolution

960H/D1/4CIF(704×576/704×480)/

CIF(352×288/352×240)/

QCIF(176×144/176×120)

Record Rate

Main Stream:

960H/D1/HD1/2CIF/CIF(1~25/30fps)

Extra Stream

QCIF(1~25/30fps)/CIF(1~6/7fps)

Bit Rate

48~3072Kb/s

Record Mode

Manual, Schedule(Regular(Continuous), MD), Stop

Record Interval

1~60 min (default: 60 min),

Pre-record: 1~30 sec,

Post-record: 10~300 sec

Video Detection

Trigger Events

Recording, PTZ, Tour, Video Push, Email,

FTP, Spot, Snapshot, Buzzer & Screen tips

Video Detection

Motion Detection, MD Zones: 396(22×18),

Video Loss & Camera Blank

Playback & Backup

Sync Playback

1/4

Search Mode

Time/Date, MD &

Exact search (accurate to second)

Playback Functions

Play, Pause, Stop, Rewind, Fast play,

Slow play,Next file, Previous file,

Next camera, Previous camera,

Full screen, Repeat, Shuffle,

Backup selection,Digital zoom

Backup Mode

USB Device/Network/Internal SATA burner

Network

Ethernet

RJ-45 port (10/100M)

Network Functions

HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP,

NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter,

SNMP, P2P

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android, Windows Phone

Storage

Internal HDD

1 SATA port, up to 4TB

Auxiliary Interface

USB Interface

2 ports (1 Rear), USB2.0

RS485

PTZ control

General

Power Supply

DC12V/2A

Power Consumption

10W(without HDD)

Working Environment

-10°C ~+55°C /10%~90%RH / 86~106kpa

Dimension(W×D×H)

Mini 1U, 325mm×255mm×55mm

Weight

1.5KG(without HDD)
