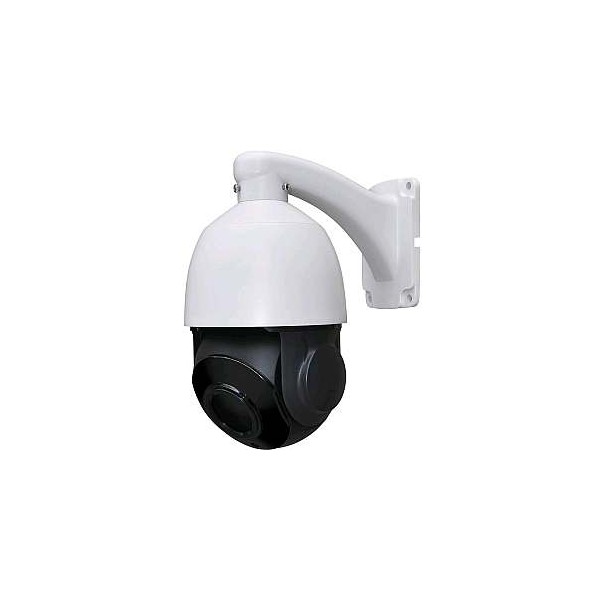

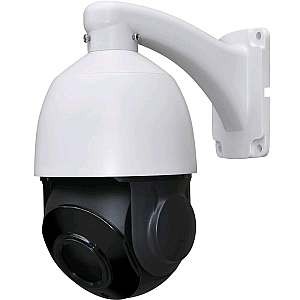

2.0MP 1/3” CMOS, 18X optical zoom Mini Outdoor IP HD IR High Speed Dome Camera IP PTZ Camera

Nedsat pris!
DKK 3,703.10 inkl. moms

DKK 3,898.00 inkl. moms

(pris reduceret med 5 %)

MY-57SL2-UB-I

Tilgængelighed: Bestillingsvare 1-3 uger

4 enheder
-10%

30 andre varer i samme kategori:

2.0MP 1/3” CMOS, 18X optical zoom

Mini Outdoor IP HD IR High

Speed Dome Camera

IP PTZ Camera



Mini Outdoor IP HD IR High Speed Dome Camera
Application:It can be widely used in wide range environments which

required monitoring, e.g. river, forest, highroad, railway, airport, port, oil field,

sentry, piazza, park, scenic zone, street, station, venue, parcel surrounding,

and etc.

Model: MY-57SL2-UB-B-I
Product Introduction: Precision motor-driven, keen responsive, smoothly operation,

the precision deviation less than 0.1 degree, the image does not have

any vibration under any speed;2.0MP 1/3” CMOS, 18X optical zoom;

Support ONVIF protocol;

Support TCP/IP、HTTP、DHCP、DNS、DDNS、RTP、RTSP、

PPPoE、SMTP、NTP、UPnP protocol;

Strong lightning protection, anti-surge function;

Outside weather-proof level up to IP66;


Feature Description:

1) 6PCS high-power infrared light, turn divided into two groups,

no flashlight effect, IR distance 60m.

2) 360°endless pan range and 0°- 90°tilt range, support auto-flip,

non-surveillance blind area;

3) Pan speed is 0.6°~200°/s and tilt speed is 3.5°~35°/s;

4) Support 220 preset; 8 patrols, each patrol can contain up to 32 presets;

support 4 patterns, can totally record up to 10 minus. Support A,B line

scanning and positioning limit;

5) Support proportional zoom function, rotation speed can be adjusted

automatically according to zoom;

6) Support park action, presets/pattern/patrol/pan scan can invoke

automatically after a defined time of inactivity (contain the idling condition

after the power supply has been turn on)



Model No.

MY-57S2-UB-I

PTZ parameter

IR distance

60m

Pan range &speed

360°endless pan range and speed 0.6°-200°/S

Tilt range & speed

0°- 90°tilt range, auto flip, speed 3.5°-35°/S

Zoom parameter

Video parameter

Image sensor

1/2.7" Ex-view 2.0MP CMOS OV2715

Resolution

Main stream1280×960

1280×720720×576640×480

Sub stream640×480352×288

320×240176×144

Low lux

0.1Luxcolor mode)、

0.01Luxblack mode)、

0 LuxIR night on

Electronic shutter

1/2 1/20,000s, support slow shutter

Coding parameter

Video compression

Adopt H.264High profile/M-JPEG double stream, three stream output(2 input H.264+1 ouput MJPEG);

stream rate

256Kbps10000Kbps(main stream),

32Kbps2000Kbps(sub stream)

Frame rate

Max 30fps(1920*1080)

Lens spec

Focal length

4.784.6mm

Optical zoom

18X

Iris value

F1.6~F1.8

Angle of view

68°6.7° (wide angel-telescope)

Function

WDR

Support digital WDR.

Mobile remote

Support android, IOS smart phone

remote control(for optional)

Digital noise ratio

Support DNR,3DNR

White balance

autooutdoorindoorlamp modemanual

3D positioning

Support click on the centerselect and amplify

compatibility

Support HikvisionDahuaJufeng CMS

UC2 etc software platform joint in

compatible with many brands NVR connection.

Day and night transfer

auto/manual

Port

Network interface

Built-in RJ45 portsupport 10M/100M

Power supply

DC 12V/2A

Others

Power Consumption

20MAX

Working Temperature and  Humidity

-20+60≤90%RH(frostless)

Protection grade

TVS3000V lightning protection,

surge protection and voltage transient

protection,weather proof: IP66

Package size(mm)

225*245*230

Weight (Kg)

2.16KG(with zoom module)
