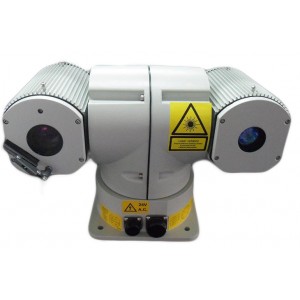

Homogenized Laser PTZ 700 m

Homogenized Laser PTZ 700 m

Kontakt os for pris.

Flere detaljer

700m Laser PTZ

5 andre varer i samme kategori:

 Homogenized Laser PTZ 700 m



Features:

1.) Newest patented homogenized laser technology.

2.) Unlike XT-SH01-L,customers will enjoy whole-screen laser night vision effect rather than just part of the screen.

3.) More solid PTZ shell can ensure higher heavy duty performance.

4.) Newly laser beam position adjust system ensures laser beam position

adjustments much more conveniently!

5.) Laser generator's power output is twice than XT-SH01-L!

6.) XT-SH02-L Laser Ptz can ONLY supports AC24V (Stationary Applications) so

far;DC12V(Mobile Vehicle Applications) will be ready soon.

7.) High strength double deck aluminum alloy meticulous casting case with strong

capability to endure abominable temperature & anti-corrosion;

8.) Waterproof class IP66.

9.) Low power consumption,long cycle life,laser night vision can be up to 600m.

10.) All weather conditions supported(Night;Abominable weather; Long distance;Large scope;)

11.) Pan range:360°continuously, Tilt range:-90° to +90°.

12.) Integrated multi-protocol decoder;Baud rate selectable;Multi-cameras

compatible.

13.) OSD menu supported.

14.) Total 3 pattern scans with each scan records 200 seconds.

15.) Real time angel display.,High accuracy of preset positions

16.) 128 preset positions with patron preset title can be displayed.

17.) 6 programmable patrols,3 auto pan and 16 privacy mask zone

18.)  Built-in surge and lightning strike protection and data power-off memory.

19.)  Alarm linkage function: 4 alarm input,1 alarm output.



Camera Specification


Model

XT-SH02-L-18B

XT-SH02-L-26B

XT-SH02-L-36B

Image sensor

1/4 Exview HAD CCD

Active pixels

752H582V

Synchronization

Internal/External

Video output

1.0Vp-p/75O

White Balance

Auto/Manual

Scanning frequency

15.625kHz  50Hz

Horizontal Resolution

                           480TVL

                530 Tvl

S/N Ratio

=50dB

Electronic shutter

1/1~10,000s

1/1~10,000s

1/50~10,000s

Min. illumination

0.01Lux

0.01Lux

0.7Lux

Focal length

f = 4.1~73.8mm

f = 3.6~91mm

f = 3.4~122.4mm

Zoom

Total 216x

Optical 18x

Digital 12x

Total 312x

Optical 26x

Digital 12x

Total 432x

Optical 36x

Digital 12x

Focal & Iris

Auto/Manual

Mechanism Parameter

Pan preset speed

80 Degree /s



Tilt Preset speed

60 Degree /s

Pan speed

0 /s~100 Degree /s

Tilt Speed

0 /s~60 Degree /s

Pan range

360 Degree Continuously

Tilt range

-90 Degree To +90 Degree

Preset/cruising tracks

128 presets/6 cruising tracks

Communication

Multi-protocol,Baud Rate from 2400bps to 19200bps for optional,RS485 control

Relative humidity

90%RH without agglomeration

IP grade

IP66

Work temperature

-35 Centigrade ~ 55 Centigrade

Power Supply

AC24V

shock

=4G

Weight

15kg
