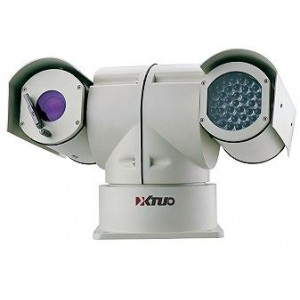

 IR PTZ Camera XT-SH01-R-18B


Features

1.) With infrared LED range up to 150 meters. It could catch image promptly at night.

2.) Weatherproof design, high die-cast aluminum casing ,protection grade IP66 with wiper

3.) Super shockproof ,especially suitable for car surveillance

4.) 360 Degree continuously rotation, upward angle up to 180 Degree.

5.) 6 cruising tracks, each cruising track has 16 preset positions

6.) 128 preset positions

7.) Input voltage :DC10.5V~DC18V/3.5A(for car surveillance), or DC24V/2.5A





Mechanism Parameter


Pan preset speed

100 Degree /s

Tilt Preset speed

60 Degree /s

Pan speed

0 /s~80 Degree /s

Tilt Speed

0 /s ~40 Degree /s

Pan range

360 Degree Continuously

Tilt range

-90 ~+90 Degree

Preset/ cruising tracks

128 presets/6 cruising tracks

Communication

Multi-protocol,Baud Rate from 2400bps to 19200bps for optical,RS485 control

Relative humidity

90%RH without agglomeration

IP grade

IP66

Work temperature

-35 Centigrade ~ +55 Centigrade

Power Supply

DC10.5V~DC18V/3.5A(for car surveillance), or AC24V/2.5A

shock

=4G

Weight

14kg



Camera Specification


Model

XT-SH01-R-18B

XT-SH01-R-26B

XT-SH01-R-36B

Image sensor

                                           1/4 Exview HAD CCD

Active pixels

752H582V

Synchronization

Internal/External

Video output

1.0Vp-p/75O

White Balance

Auto/Manual

Scanning frequency

15.625kHz(H)  50Hz(V)

Horizontal Resolution

480TVL

                530 Tvl

S/N Ratio

=50dB

Electronic shutter

1/1~10,000s

1/1~10,000s

1/50~10,000s

Min. illumination

0.01Lux

0.01Lux

0.7Lux

Focal length

f = 4.1~73.8mm

f = 3.6~91mm

f = 3.4~122.4mm

Zoom

Total 216x

Optical 18x

Digital 12x

Total 312x

Optical 26x

Digital 12x

Total 432x

Optical 36x

Digital 12x

Focal & Iris

Auto/Manual



Camera Option


Model

FCB-EX480cp

VK-S454E

FCB-EX980p

VK-S654

FCB-EX1000

VCC-MD600P

Description

Sony 18x

 D/N

Hitachi 23x D/N

Sony 26x  D/N

Hitachi 35x D/N

Sony 36x  D/N

Sanyo 30x D/N



v

v

v

v

v

v
