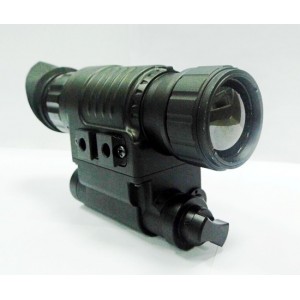

Mini Helmet Monocular Thermal Camera

KE30H-25A



Designed in ultra compact size (104×79× 50mm) and light weight (0.23kg), utilizing a 384 × 288 thermal imaging core, compatible with Rhino night vision mount, the helmet thermal monocular lets officers see clearly in rainy, smoky, light foggy, and even in total darkness, providing an undeniable tactical advantage, thus make quick decisions, enhance mission effectiveness and improve officer safety.



Features Highlights:



• Functional Thermal Imaging System

• UFPA, α-Si, 384x288, 25x25um pitch

• Round dioptric eyepiece, tightly close to eyes

• Light 25mm (manual focus) Germanium lens

• 50Hz (PAL) full frame rate video output

• Color OLED screen/ 800*600 pixels

• White Hot Infrared imaging, no need of visible light

• Helmet mount available, compatible with Rhino night vision mount

• 3.7V rechargeable Li-battery for power

• Extremely light and compact design

• Size:104 mmx79 mmx50 mm

• Weight: 0.23kg



Product Characteristics

Product Name

Monocular Thermal Imaging Camera

Model No.

KE30H-25A

IR Sensor Characteristics

Type

Uncooled Focal Plane Array  Microbolometer

Material

Amorphous Silicon

Resolution (pixels)

384x288

Pixel Size

25 x 25 μm

Spectral Response

8~14μm

Thermal Sensitivity (NETD)

≤80mk@25℃

Optics Lens

Type

Manual focus Germanium lens; hard coated with carbon film for protection

Focal Length

25mm

Field of View (FOV)

22.0°(H)x 16.5°(V)

IFOV

1.00mrad

Image & Video Management

Video Output

 RS170 CCIR/PAL composite video (50Hz)

Video Interface

Aviation port

Display Type/ Resolution (pixels)

0.61" Color OLED/ 800x600

Image Polarity

White Hot ( default )

Calibration

Auto/ Manual

Power

Supply Type

1ps 3.7V rechargeable lithium battery, 1400mAh

Support 5VDC external power input

Consumption

<3W(@25℃)

Environment Characteristics

Operating Temperature Range

-10C ~ +50C

Storage Temperature Range

-25C ~ +60C

Non-condensing humidity

5% to 95%

Encapsulation

IP66

Shock Resistance

Shockproof to 1m drop.

Physical Characteristics

Housing

Color: black

Material: Al-alloy

Net weight(including lens and one battery)

0.3 kg

Dimension(L x W x H)

110 mmx79 mmx50 mm

Total weight(including package box)

2.0 kg

Package dimension(L x W x H)

250 mmx170 mm220 mm

Standard package kits

thermal image monocular, 2pcs rechargeable Li-batteries, video-output cable, battery charger, user manual
