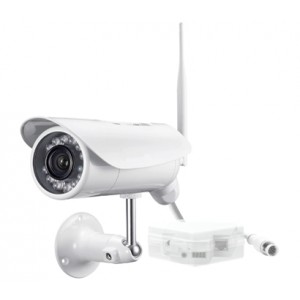

NC316W Bullet Outdoor IP Camera
Kontakt os for pris.
P2P, iPhone/iPad/Android/PC/Mac/Linux, H.264, MPEG-4, M-JPEG,
2-Way-Audio, IR-Cut , 802.11b/g/n Wireless LAN, Micro SD,
Multi-Client Access, Outdoor IP66 Rated
The NC316W camera is an indoor and outdoor fixed IP network camera with the ability for day/night viewing with 12 built-in IR infrared illuminators (up to 50ft distance). And it offers high quality video with frame rates of up to 30fps in 640x480 VGA max resolution. The IR cut filters allow for full color video in daylight and monochrome video for low-light conditions. Audio support is provided with one-way or two-way audio.
The NC316W camera can be configured for wired or wireless networks on both PC and Mac. The onboard SD slot allows for local recording on the camera and can record up to 32GB of data.
NC316W camera provides free setup software for both PC and Mac that allow you to configure the camera for your network.
Compact Design
NC306W camera offers a compact design for installation in areas that will not attract attention. dimensions - 70mm x 70mm x 190mm ( W x D x H).
Outdoor Monitoring
NC316W camera is ideal for nighttime viewing with 12 built-in IR infrared illuminators. This allows for visible video in zero light situations. The outdoor enclosure allows for operation within -4 to 122°F.
Wireless Connectivity
NC306W camera allows for wireless connection IEEE802.11b/g/n wireless networks. This allows for easy setup in locations where running Ethernet cable would be difficult.
MicroSD Slot for Onsite Recording
The built-in SD slot allows for up to 8GB of onsite recorded video when a recording PC is not present.
Superior Image Quality
With support up to 640x480 resolution with 30fps, the NC316W camera offers exceptional image quality in both indoor and outdoor applications.
Mobile Viewing
P2P, The camera can be viewed on mobile devices including the iPhone,iPad, Android. The NC316W camera can also be viewed via VLC-compatible streams including QuickTime and RealPlayer.
Macintosh (Mac) and Linux Compatible
NC316W camera is compatible with Apple Macintosh and Linux . Mac users can view live video and audio using QuickTime and manage the camera settings through their web browser. The Two-way Audio support is currently not available for Mac systems.
Wide Range of Applications
NC316W camera is ideal for any type of application including home monitoring, small or medium sized businesses, parking lots, gas stations, warehouses, police stations and government offices.
Free Recording Software
NC316W camera come with free IP camera recording software. The software allows for live monitoring and recording for up to 36 cameras of our production.
Infrared Night Vision (IR-CUT)
The camera built-in IR-Cut which is prevent the image to happen color cast during daytime ,it can be switching and filter infrared light in day/night.
Camera |
|
P2P |
Yes |
Support |
iPhone, iPad, Android, PC, Mac, Linux |
Image compression |
H.264, MPEG-4, M-JPEG |
Micro SD Card |
Yes |
2-Way-Audio |
Yes |
Viewing angle |
Horizontal: 60°, Vertical:45° |
Focal length |
f=4.3mm |
Aperture |
F2.0 |
Image device |
1/4" CMOS |
Infrared LED |
12 |
Night Vision Distance |
15m |
IR cut filter |
Yes |
Network |
|
Pixels |
310000 |
Image resolution |
640x480(VGA), 320x240(QVGA), 160x120(QQVGA) |
Max. frame rate |
30fps @640x480 |
Audio compression |
AAC, AMR |
Simultaneous viewers |
16 |
Authentication |
ID/Password, Administrator/General User (Up to 64) |
Network protocols |
TCP,UDP,IP,ARP,ICMP,DHCP,DNS,HTTP,FTP,SMTP, NTP,PPPoE,UPnP,DDNS |
Stream type |
RTSP/RTP/RTCP, 3GPP, ASF, HTTP |
Network connection |
Ethernet (10BASE-T/100BASE-TX) |
Wireless LAN |
|
Wireless technology |
IEEE802.11b/g/n |
Frequency |
2.412-2.462GHz |
Transmission speed |
150Mbps/54Mbps/22Mbps/11Mbps/5.5Mbps/ 2Mbps/1Mbps (Auto Switch) |
Security |
WEP (64/128 bit), WPA-PSK(AES/TKIP), WPA2-PSK(AES/TKIP) |
External Port |
|
Built-in microphone |
Electret Condenser Microphone |
Min.illumination |
1.0 Lux |
Exposure mode |
Auto |
Digital I/O |
1 input, 1 output |
General |
|
Power requirements |
DC 12V |
Power consumption |
3.75W |
Power over Ethernet (POE) |
no |
Operating temperature |
-20 to +50 °C (-4 to +122 °F) |
Storage temperature |
-20 to +60 °C (-4 to +140 °F) |
Operating humidity |
20~90%RH(Non-condensing) |
Storage humidity |
20~95%RH(Non-condensing) |
Dimensions(W x D x H) |
70mm x 70mm x 190mm |
Weight |
700g (Main Body) |
Supplied accessories |
AC adaptor (x1), CD-ROM(setup programs and user manual), Stand(x1),Quick Guide |
PC system requirements |
|
Operating system |
Windows 2000/XP/Vista/7, MacOS, Linux |
Processor |
Intel Pentium III, 1GHz or Higher |
Memory |
256MB RAM Minimum |
Web browser |
Microsoft Internet Explorer Version 5.5 or Later |
