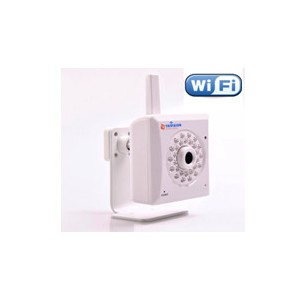

NC-220WF Indoor IP Camera 3,6mm

NC213W-IR Indoor IP Camera 3,6mm

Kontakt os for pris.

Flere detaljer


6 andre varer i samme kategori:


P2P, iPhone/iPad/Android/PC/Mac/Linux, H.264,

MPEG-4, M-JPEG,  IR-Cut, 802.11b/g/n Wireless LAN,

Micro SD, Multi-Client Access


Infrared Night Vision
The camera utilizes 28 infrared LED to provide high light in darks environment. When the environment is dark, the LED will be opened automatically due to a photosensitive component, and the moving images will be changed to Black and White. Users can monitor clearly the things within 12 meters distance. Interface allow users to select open or close the infrared LED manually.

Mobile Viewing
P2P, The camera can be viewed on mobile devices including the iPhone,iPad, Android. The NC220WF camera can also be viewed via VLC-compatible streams including QuickTime and RealPlayer.

Simultaneous High-Speed H.264, MPEG-4 and Motion JPEG
The camera allows live the H.264, MPEG-4 and Motion JPEG streams simultaneously. The camera features H.264, MPEG4 compression which compresses the video to make transmission faster and more efficient. The H.264, MPEG4 and MJPEG image can be transmitted at 30 frames per second. Because of its high-compression ratios, users can monitor high-quality moving images with low delay even at low bandwidths. The image size can be selected according to the network environment and application requirements. Image size can be selected from three modes: 640 x 480, 320 x 240, and 160 x 120.

Simultaneous HTTP and RTSP streaming
The camera support HTTP and RTSP/RTP/RTCP protocol, and provide multiple HTTP and RTSP streams simultaneously.

802.11b/g/n Wireless LAN
The NC220WF is designed to not only work with your existing wired network but also can be compatible with standard 802.11b/g/n wireless devices, allowing the flexibility to install and operate the NC220WF without running network wire, and utilizing SSID filtering and powerful 64/128 bit WEP and WPA/WPA2-PSK encryption helps to protect your wireless network from illegal intrusion. NC220WF can work compatibly with 802.11b/g/n.

High Frame Rate
The NC220WF produces images with a maximum frame rate of 30 fps* at 640 x 480 size in H.264, MPEG-4 and MJPEG modes, allowing clear and smooth images to be viewed. The frame rate can be fixed or set to a variable rate that adjusts to the available bandwidth.

Audio Transmission
Incorporating a built-in microphone, the NC220WF allows users to monitor audio in addition to video images.

Snapshot and Recording
You can capture still image or record the moving video and audio captured by the camera on your PC.

Motion Detection
The NC220WF is equipped with a built-in motion detection function that can generate an alarm trigger various actions. Unlike conventional activity detection, the NC220WF uses vector information to detect motion, achieving robustness against noise components. Once anything happens, still images can be sent to a specified e-mail address or FTP server.

All-in-One Network Camera
The NC220WF incorporates a 1/4-type CMOS sensor, built-in microphone, and 100Base-TX/10Base-T (RJ-45) network nterface in a compact and stylish body. With its built-in web server, the NC220WF allows users to monitor images and manage the camera on a PC running a standard web browser; additional software is not needed.

Easy Installation
No need to install the driver for the NC220WF. Setup CD-ROM includes the Camera Setup software, User's Manual and Quick Guide. Insert the Setup CD-ROM and auto run program should start the application automatically. With industry standard automatic configuration-UPnP(Universal Plug and Play), PC will search and connect to your camera automatically without any complicated setup. Once connected, using a simple Web browser, just enter in your free, permanent Web address which comes with the NC220WF and you can see the camera. The NC220WF can be either wall-mounted or ceiling-mounted with the fixing plate or placed on a desktop using the supplied camera stand, providing flexible installation to meet your specific needs.

Multi-Client Access
The NC220WF allows up to 16 users to view H.264, MPEG4 image simultaneously. Users can access the Top View Image screen from their own locations. Note that as the number of users simultaneously connected to NC220WF increases, the overall motion performance will decrease.

Authentication window requires you to enter the administrator/general user ID and password. Password security can prevent unregistered users/intruders from accessing your image from their web browsers.


P2P Plug and Play Hassel-Free IP Camera Installation

(No IP Address, DDNS, Router setup )

Free MultiLive cameras  apps on PC

Free P2P apps for iPhone,  iPad, iPod Touch

Free P2P apps for Android smartphone and tablet


Image device & pixels

1/4" CMOS sensor with 310K pixel resolution,

 f=3.6mm focal length/F2.0 Aperture/ Horizontal: 62°,

Vertical: 46°

Image compression

H.264, MPEG 4 , MJPEG( Triple codec)

Stream type


Audio Compression


Image resolution

640 x 480

Max . Frame rate

30fps@ 640 x 480

Infrared night vision & Distance

12m (35 feet)

IR-CUT Filter


1-way audio (audio in)

Built-in Microphone

Electret Condenser Microphone



IEEE802.11b/g/ n




2 levels, up to 64 users

Network protocols



Wired Connection

Ethernet (10BASE-T/100BASE-TX)

POE (Power over Ethernet)


Recording & Storage

SD card  slot

MicroSD card (Max 32 Gb)

FTP server compatible


NAS drive compatible

Automatically transfering footage and alerts  to NAS

for unlimited storage

ONVIF profile S

Milestone,n NUUO, Luxriot, Axxo


Power inquirement

DC 12V

Power Consumption

3.75 W

Operating temperature

-5 to +45 °C (+22 to +113 °F)


(W x D x L)

85mm x 85mm x 30mm


150g (Main Body)

Supplied accessories

AC Adaptor (x1), Quick Start Guide (x1), CD-ROM inc. Setup Software & User Manual & Multilive monitor system software(x1), Stand (x1), Network Cable (x1)



OS compatible

Mac, Widowns PC, Linux

Web Browser compatible

Safari , IE ,Mozilla Firefox, Google Chrome with audio and video streaming

Viewer Compatible

QuickTime , VLC, Real Player, Active X for PC/IE with audio and video streaming
