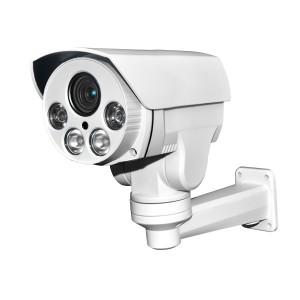

960P IR Bullet IP PTZ Camera
4X Zoom 2.4 – 12 mm POE
Kun 3 stk.
- 1/3" Sony Exmor CMOS sensor
- HD resolution 1280 x 960P
- Ultra low illumination 0.01Lux
- 4x optical zoom, PTZ control
- Day/Night (ICR), AWB, AGC, BLC, 2D/3D-DNR
- WDR, Smart IR, Motion Detection, Privacy Mask, Mirror
- Lightning protection 4000V
- Strong water-proof housing, IP66
- 4 pcs Array IR Leds, IR distance 40-50 meters
- 2.4 – 12 mm AF lens
Model |
YC-DHM130IR |
Camera |
|
Image Sensor |
1/3" Sony Exmor CMOS |
Effective Pixels |
1280(H)×960 (V) |
Electronic Shutter |
AUTO, 1/25s ~ 1/100000s |
Min. Illumination |
0.01Lux@F1.6(AGC ON), 0Lux IR on |
Day/Night |
Auto/Color/(B/W) |
WDR |
Digital WDR |
White Balance |
Auto |
AGC/BLC/HLC |
Support |
DNR |
2D/3D DNR, multi-levels adjustable |
OSD Menu |
Support |
Other |
Motion, Privacy Mask, Mirror, Flip |
Encode |
|
Embedded Solution |
Hi3518 |
Video Standard |
H.264 |
Video Resolution |
960P@25/30fps |
Video Bitrates |
32Kbps - 8Mbps, VBR/CBR |
Audio Standard |
G.711-u |
IR Led |
|
IR Led |
4 pcs 850nm Array IR Leds |
IR Distance |
40-50 M |
Lens |
|
Focal length |
2.8 -12 mm AF lens |
Zoom |
4x optical zoom |
PTZ |
|
Pan/Tilt Range |
Pan: 0° ~ 260°; Tilt: -5° ~ 60° |
Preset Point |
256 |
Manual Control Speed |
Pan: 0.5° ~12° /s; Tilt: 0.51° ~12° /s |
Preset Tour |
8 lines |
Pattern Scan |
4 lines |
Optional Function |
|
Audio, Alarm In/Out, SD card, etc. |
|
Network Services |
|
Web |
IE , Chrome, etc. |
Media |
CMS, Android, IOS |
ONVIF |
2.0 compatible |
General |
|
Network Port |
1-RJ45, 100Mbps, POE |
Power Supply |
12 VDC ± 10% |
Power Consumption |
< 15 W |
Operating Temp. |
-30C-(+60)C, 10%-90%RH |
