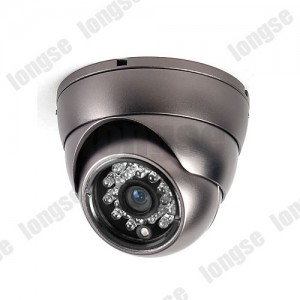

1/3" SONY Vandalproof IR Dome Camera 700 TVL

SONY Vandaproof IR Dome Camera  700 TVL

 1 stk.

Features:

Vandalproof IR Dome Camera
SONY Color CCD
IR LED: Ø 5X24 PCS, IR LED working Distance: 20M
Lens: Board Lens 3.6mm/F2.0
Dimension : Ø 94 x 69(H) mm

Specifications:

Model LIRDBSHE


Image Sensor
1/3" SONY 672/673 + SONY Effio-e

Horizontal Resolution:

700TV Lines Low Illumination, Effio, ATR, OSD, DNR

Pixels PAL:
PAL:976 (H)× 494(V) NTSC :976 (H) ×582 (V)

IR LED Ø5 X 24 PCS
IR Series Distance 20 M

Lens Board Lens 3.6mm/F2.0

Sync System Internal
IR Status Under 10 Lux By CDS
Usable Illumination  0.001Lux/F2.0  0.0005Lux/F2.0
IR Power On CDS Auto Control
S/N Ratio ≥65dB (AGC OFF)
Gamma Correction 0.45

Video Out Composite Signal (1.0Vp-p, 75Ω)
Scanning System PAL: 625 Lines, 50 Field/Sec;NTSC: 525 Lines, 60 Field/Sec
Electronic Shutter Time Auto: AL 1/50-1/100, 000Sec;NTSC 1/60-1/100, 000Sec

Operation  Temperature -10℃ ~ +50℃ RH95% Max
Storage  Temperature -20℃ ~ +60℃ RH95% Max
White Balance Auto

Power Source DC12V 300mA
Dimension Ø 94 x 69(H) mm
