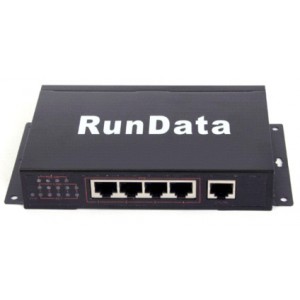

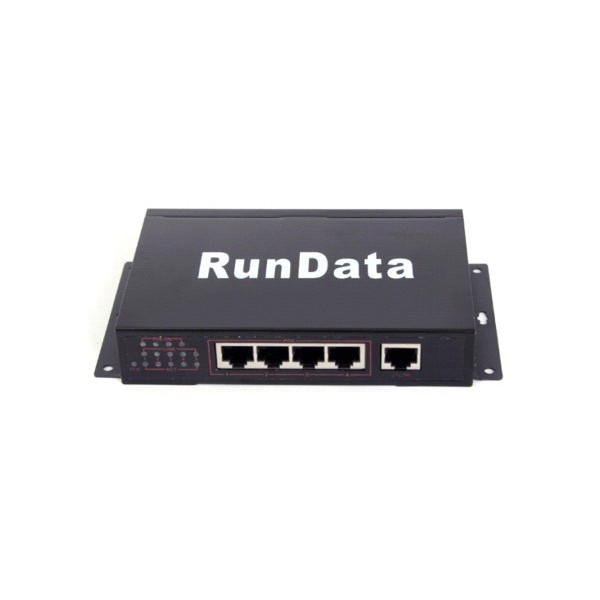

4 port PoE switch

29 andre varer i samme kategori:

4 port PoE switch

PS104

Features:

IEEE 802.3af Power over Ethernet PoE compliant

Supports 10/100Mbps fast Ethernet

4 x 100M bit Auto-MDIX PoE portsInternal power supply

Provides up to 15.4 watts for PoE

Automatically detects the PoE class level of a Powered Device

1Gbps Backplane bandwidth

Forwarding rate: 100 Mbps / 148,800 pps; 10 Mbps / 14,880 pps

Status LEDs: System Power, PoE, 100 Mbps, and Link / Activity

Full wire-speed non-blocking reception and transmission

Store-and-forward switching method

Back pressure Flow Control for Half-Duplex modeI

EEE 802.3x Flow Control for Full-Duplex mode

Power saving technology powers down unused ports and when a connected device is in

standby mode

Plug and Play

Sturdy rack mountable metal case Easy installation and use ,

no need to convert by software and network mprotocol

Technical Specification:

Hardware
Standard	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-T IEEE 802.3af Power over Ethernet (PoE) IEEE 802.3x Flow Control
Ports	4x100M bit Auto-MDIX PoE / PoE+ RJ-45 ports
Data Transfer Rate	Ethernet: 10/100 Mbps (Half / Full Duplex)
Forwarding Rate	100 Mbps / 148,800 pps, 10 Mbps / 14,880 pps
Data RAM Buffer	96 Kbytes
Address Table	2 K MAC entries
Switch Fabric	1Gbps
Power	100-240 V, 50/60 Hz, 1.5A
Diagnostic LEDs	Power, PoE, Link / Activity
Power Consumption	Min: 8 Watts (standby) Max: 72 Watts PoE Max: 60 Watts (4 x 15 watts PoE devices connected
Temperature	Operating: 0° ~ 45°C (32° ~ 113°F) Storage: -20° ~ 90°C (-4° ~ 194°F)
Humidity	Max 90% (non-condensing)
Dimensions	140 x 91 x 28 mm
Weight	0.85 kg
Certifications	CE, FCC ROHS
PoE
Power over Ethernet	Up to 15.4 watts for PoE PoE: pin 3,6 for power- and pin 1,2 for power+
